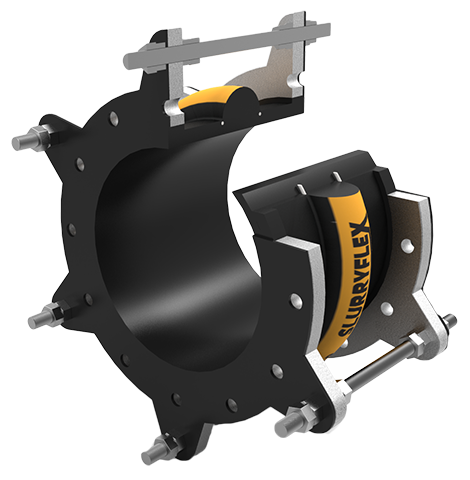

The Slurryflex SJF-Series Restrained Rubber Expansion Joint incorporates a control unit system that sets its maximum allowable movement. By limiting the amount of expansion or contraction, the restrained joint averts damage from excessive movement of the pipe system.

Like any other expansion joint, it also absorbs pipe movements, relieves stress, reduces noise and vibration, and compensates for pipe misalignment. It’s suitable for abrasive slurries, mineral processing plants, tailings lines, sand, and gravel.

All of our Slurryflex expansion joints are custom made in Australia from premium materials. Tell us about your application and we’ll help you choose the right materials, size, length, and end connections.

Technical specifications

Brand

Slurryflex

Model

SJF-Series

Joint diameter

DN50–1500 (2–60”)
Contact us for larger sizes

Joint lengths

Custom lengths to suit requirements

End connections

Fixed flange
Beaded end swivel flange
Double flange
Plain cut end

Flange drillings

AS2129, ASME, BS, SABS, JIS, DIN, custom

Pressure rating

Up to 5000kPa as standard
Contact us for special requirements

Safety factor

4:1 for minimum burst pressure as standard
Contact us for special requirements

Temperature rating

-30°C to +75°C as standard
Contact us for special requirements

Material specifications

Inner liner

Slurryflex Grade-A Rubber, proprietary compound for wear performance in abrasive slurries (contact us for other specialty applications)

Outer cover

Proprietary rubber compound for UV, ozone, and abrasion resistance

End connections

Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy (on request)
