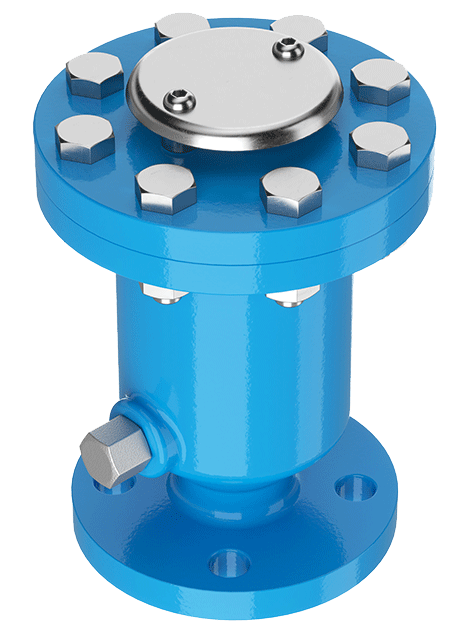

The Beaver A07–A09 3-Function High-Pressure Air Valve performs a combination of functions and is specifically designed for high pressure services.
The valve works in three ways. First, it exhausts air that accumulates during the filling process. It also allows air in during emptying to prevent vacuum in the pipe. Finally, it expels air pockets that form when the valve is pressurised.
Beaver High Pressure Combination Air Valves are suitable for drinking water, sewage, irrigation, and water supply.
Technical specifications
Brand
Model
A08 (PN 64)
A09 (PN 100)
Size range
Pressure class
PN64
PN100
End connections
Flanged
Material specifications
Body
Carbon steel A216-WCB for PN64/PN100
Cover, float ball, and internal mechanisms
A316 (optional)
Seat
Bolting
External galvanised steel
Coating
Internal and external thickness of 200 microns
