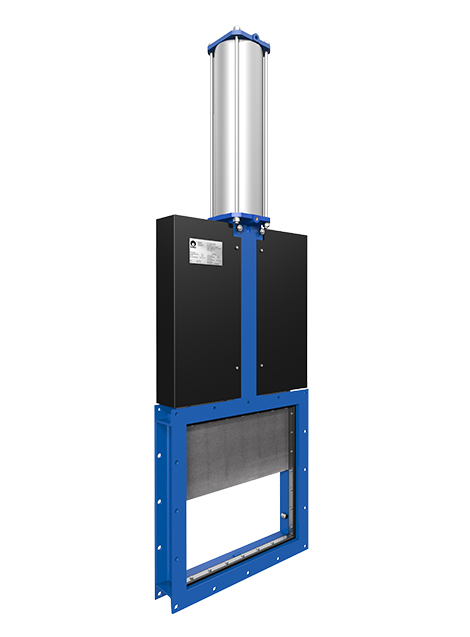

The CMO C Knife Gate Valve has a single mechanically welded body that can be specified either as a square or rectangle. When open, the gate promotes unobstructed flow and material discharge.

We can supply this valve with metal or resilient seats, such as nitrile, EPDM, FPM, silicone, and PTFE which provide watertight seal. Both metal/metal and soft-seated seat combinations can be fitted with a deflector to protect the valve from abrasion and direct the flow towards the centre of the valve.

The CMO C Knife Gate Valve is suitable for solids and gravity feed applications with high solids concentrations.

Technical specifications

Brand

CMO

Model

C series

Size range

125 x 125mm to 1400 x 1400mm (5–56”)
Contact us for bigger sizes

Pressure class

0.6 bar
Contact us for higher pressures

End connections

Flanged

Actuator options

Handwheel
Gear operated
Pneumatic
Hydraulic
Electric

Material specifications

Body

Standard: S275JR carbon steel and AISI304 or AISI316 stainless steel
On request: Stainless steel alloys (AISI 316 Ti, Duplex, 254 SMO, Uranus B6)

Gate

Standard: AISI 304 or 316 stainless steel
Contact us for other materials, coatings, and finishes

Seat and max temperature

EPDM, nitrile (90°C)
Silicone (200°C)
Viton (210°C)
PTFE (250°C)
Metal (>250°C)
