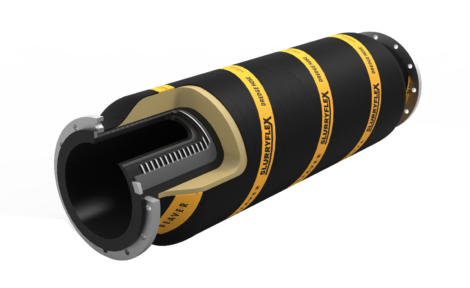

The Slurryflex DH-Series Self-Floating Hard-Wall Dredge Hose has an integral foam casing to allow it to float independently. It is suitable for suction and discharge duty.

This hard-wall hose consists of a slurry wear-resistant rubber inner layer, a wire helix reinforcement layer to contain internal pressure, and an outer cover that protects from UV, ozone, and external abrasion. This gives it greater flexibility and prevents kinking around bends or close to the dredge.

High-density closed cell foam provides buoyancy without the need for additional floats and also prevents water absorption. This avoids common problems such as catching or bunching which can cause the floating pipeline to sink.

Slurryflex hoses are completely custom made according to your specifications. We manufacture them in Australia from Slurryflex Grade A rubber for long-lasting resistance to abrasion, cutting, tearing, and overall wear. Talk to us about your application and we’ll help you choose the right hose for the job.

The world's toughest mining hose. Learn how we make it here »

Technical specifications





Hose size

DN50–1500 (2–60”) as standard

Hose length

Up to 15m (50’) as standard

Pressure rating

-100 to +5000kPa (0 to +725psi)
Higher on request

Temperature rating

-30°C to +75°C for Slurryflex Grade A rubber

Buoyancy rating

0% (neutral) to 50% (half of hose out of water)

End connections

Full spigot fixed flange
Full spigod swivel flange

Flange types

AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092, BS3293, JIS B2220, SANS 1123, DIN ISO 7005, custom

Safety factor

4:1 as standard

Extra options

Custom nozzles, branches, or connections
Wear monitoring system (plug-only or push-button)

Material specifications

Inner liner

Slurryflex Grade A rubber (for high-wear slurry)
Slurryflex ASR rubber (for acidic slurry)
Slurryflex HSR rubber (for hydrocarbon-containing slurry)
Slurryflex TSR rubber (for high-temperature slurry)
Slurryflex custom formulation


Synthetic fabric

Outer cover

UV, ozone, and abrasion-resistant rubber

End connections

Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy

How we help you choose the right hose:

Tell us what you need.

Tell us about your application. What do you want to achieve? What problems do you need to overcome? Let's work back from there.

Choose the right solution.

Weigh up the options. We'll do the analysis, discuss the options with you, and recommend the right hose—the choice we'd make in your shoes.

Get the job done.

You get your hose delivered to site, on time, and to spec. We've got your back all the way, including installation and commissioning.
