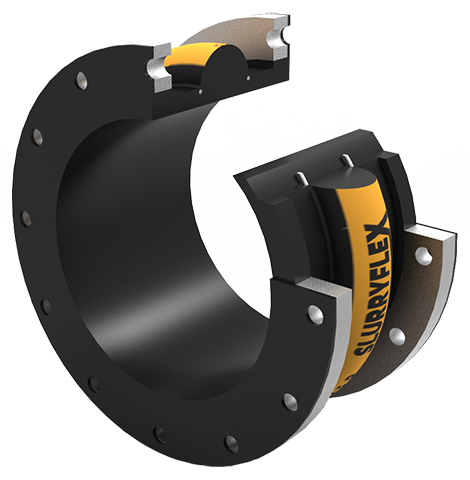

The Slurryflex SJA-Series Single Arch Rubber Expansion Joint provides vibration control, compensates for pipework misalignment, and allows for thermal expansion in abrasive slurry applications. The single-arch configuration increases the range of movement of the joint.

This expansion joint is suited to the transfer of abrasive slurries, sand, and gravel in mineral processing plants, and tailings lines. It’s also available in custom designs for specialty applications such as fluids or slurries containing chemicals, acids, and hydrocarbons.

All of our Slurryflex expansion joints are custom made in Australia from premium materials. Tell us about your application and we’ll help you choose the right materials, size, length, and end connections.

Technical specifications

Brand

Slurryflex

Model

SJA-Series

Joint diameter

DN50–1500 (2–60”)
Contact us for larger sizes

Joint lengths

Custom lengths to suit requirements

End connections

Fixed flange
Beaded end swivel flange

Flange drillings

AS2129, ASME, BS, SABS, JIS, DIN, custom

Pressure rating

Up to 5000kPa as standard
Contact us for special requirements

Safety factor

4:1 for minimum burst pressure as standard
Contact us for special requirements

Temperature rating

-30°C to +75°C as standard
Contact us for special requirements

Material specifications

Inner liner

Slurryflex Grade-A Rubber, proprietary compound for wear performance in abrasive slurries Contact us for other specialty applications

Outer cover

Proprietary rubber compound for UV, ozone, and abrasion resistance

End connections

Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy (on request)
