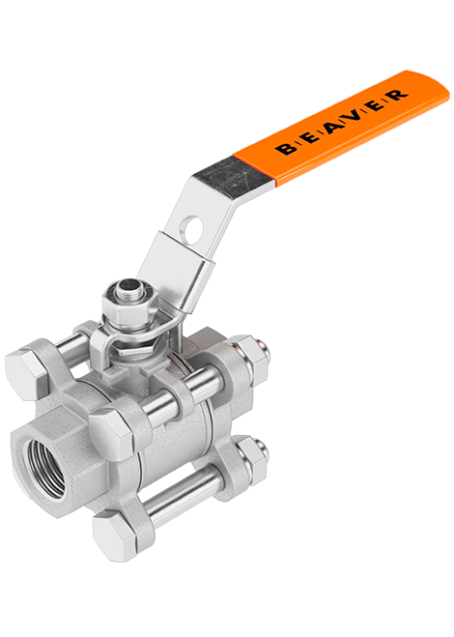

This range of Beaver ball valves is suitable for either isolation or flow control depending on the body design. The stainless steel body is available in a one-piece, two-piece, or three-piece configuration with threaded or socket weld end connections.

A resilient seat provides a bubble-tight shut-off with zero leakage. Available from DN8–100, this ball valve covers most requirements in water, oil, gas and chemical process applications.

Technical specifications

Brand

Beaver

Model

B01 (1-piece reduced port)
B02 (2-piece full port)
B03 (3-piece full port)
B04 (3-piece full port with ISO mounting pad)

Size range

DN8–100 (¼–3”)

Pressure class

69 bar (1000 psi)

End connections

Threaded BSP
Threaded NPT
Socket weld

Temperature range

-40°C to +180°C

Actuator options

Handwheel
Gear operated
Pneumatic
Hydraulic
Electric

Material specifications

Body, ball, and bonnet

CF8 (304)
CF8M (316)

Seat

PTFE
RPTFE

Seal ring and packing

PTFE
