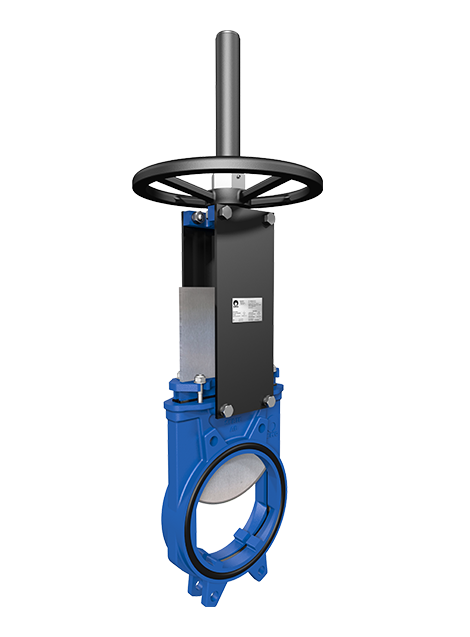

The CMO AB Knife Gate Valve is a general purpose valve with a monobloc body suitable for bidirectional service in low and medium-pressure applications.

The monobloc machine-cast body has built-in wedges that allow true bidirectional flow at the same working pressure.

This valve has a soft seat with a U-shaped rubber sealing joint covering the gate’s perimeter. An internal stainless steel wire maintains the shape of the sealing joint and keeps it in place. This design ensures a completely flat seal that prevents solid build-up and internal cavities.

The CMO AB Knife Gate Valve is suitable for liquids with a maximum solids concentration of 4%.

Technical specifications

Brand

CMO

Model

AB series

Size range

DN50–600 (2–24”)
Contact us for bigger sizes

Pressure class

10 bar (DN50–150)
8 bar (DN200)
6 bar (DN250–300)
5 bar (DN350–450)
3 bar (DN450–600)
Contact us for other pressure classes

End connections

Wafer

Actuator options

Handwheel
Gear operated
Pneumatic
Hydraulic
Electric

Material specifications

Body

Standard: GJS-250 cast iron and CF8M stainless steel
On request: GJS-500 nodular cast iron, A216WCB carbon steel, and stainless steel alloys (AISI 316 Ti, Duplex, 254 SMO, Uranus B6)

Gate

Standard: AISI 304 and 316 stainless steel
Contact us for other materials, coatings, and finishes

Seat and max temperature

EPDM, nitrile (90°C)
Silicone (200°C)
Viton (210°C)
