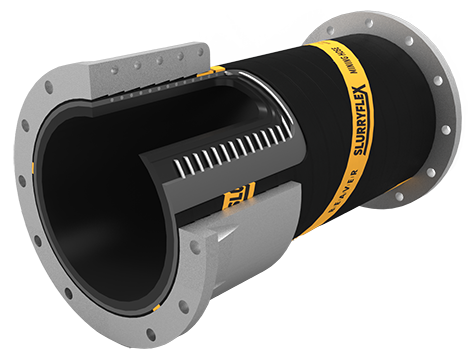

The Slurryflex SM-Series Muff Coupling Mining Hose is a straight length hard-wall hose with one integrally built end connection. The other end of the hose can come as a plain end or with a split-body muff coupling.

This type of hose is used when the distance from pipe to pipe can’t be accurately measured. The SM-Series mining hose can be cut to length on site and retrofitted into the pipework with the muff coupling. The hose’s pressure rating is based on the pressure rating of the muff coupling.

Slurryflex Grade A rubber gives you long-term resistance to abrasion, cutting, and tearing. Independent tests have shown that Slurryflex hoses are the most flexible, longest lasting slurry hoses on the market.

All of our mining hoses are custom made in Australia to your specifications. We have the largest mining hose factory in Australia and use a hot vulcanisation process to produce a robust, premium hose. Talk to us about your requirements and we’ll help you choose the right hose for the job.

The world's toughest mining hose. Learn how we make it here »

Technical specifications

Brand

Slurryflex

Model

SM-Series

Hose size

DN50–400 (2–16”) as standard

Hose length

Up to 20m (66’) as standard

Pressure rating

-100kPa to +700kPa (-14.5psi to 100psi)
Higher on request

Temperature rating

-30°C to +75°C for Slurryflex Grade A rubber

End connection 1

Muff coupling
Plain end
Flanged (fixed or swivel)
Flanged full spigot (fixed or swivel)
Double flanged
Grooved (roll or cut)
Threaded
Butt weld
Custom

End connection 2

Muff coupling
Plain end

Flange types

AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092, BS3293, JIS B2220, SANS 1123, DIN ISO 7005, custom

Groove types

AWWA C606 OGS, Victaulic AGS, custom

Thread types

BSP, NPT, API, premium, custom

Safety factor

4:1 as standard

Extra options

Custom nozzles, branches, or connections
Wear monitoring system (plug-only or push-button)

Material specifications

Inner liner

Slurryflex Grade A rubber (for high-wear slurry)
Slurryflex ASR rubber (for acidic slurry)
Slurryflex HSR rubber (for hydrocarbon-containing slurry)
Slurryflex TSR rubber (for high-temperature slurry)
Slurryflex custom formulation

Reinforcement

Synthetic fabric and wire helix

Outer cover

UV, ozone, and abrasion-resistant rubber

End connections

Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy

Muff coupling

Aluminium
Cast iron

How we help you choose the right hose:

Tell us what you need.

Tell us about your application. What do you want to achieve? What problems do you need to overcome? Let's work back from there.

Choose the right solution.

Weigh up the options. We'll do the analysis, discuss the options with you, and recommend the right hose—the choice we'd make in your shoes.

Get the job done.

You get your hose delivered to site, on time, and to spec. We've got your back all the way, including installation and commissioning.
