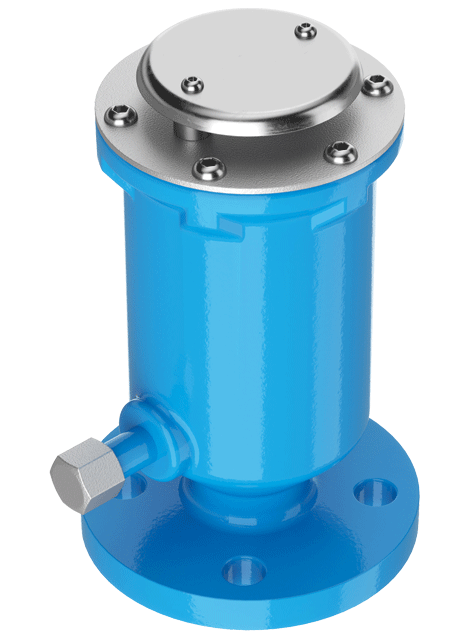

The Beaver A01–A06 Combination Air Valve has a multi-function design that makes it light, reliable, and easy to install.

The air valve’s three functions are to expel air that accumulates during filling, let in air during emptying to prevent vacuum formation, and remove air pockets when the valve is pressurised.

This series of Beaver Combination Air Valves is suitable for drinking water, sewage, irrigation, and water supply.

Technical specifications

Brand

Beaver

Model

A01 (PN10 Threaded)
A02 (PN16 Threaded)
A03 (PN25 Threaded)
A04 (PN10 Flanged)
A05 (PN16 Flanged)
A06 (PN25 Flanged)

Size range

DN25–300 (1–12”)

Pressure class

PN10
PN16
PN25

End connections

Threaded
Flanged

Material specifications

Body

Ductile iron EN GJS-500-7

Cover, float ball, and internal mechanisms

Stainless steel A304
A316 (optional)

Seat

Elastomer NBR/EPDM

Bolting

Internal stainless steel A2
External galvanised steel

Coating

Non-toxic epoxy for drinkable water
Internal and external thickness of 200 microns
Contact us for other materials and coatings
