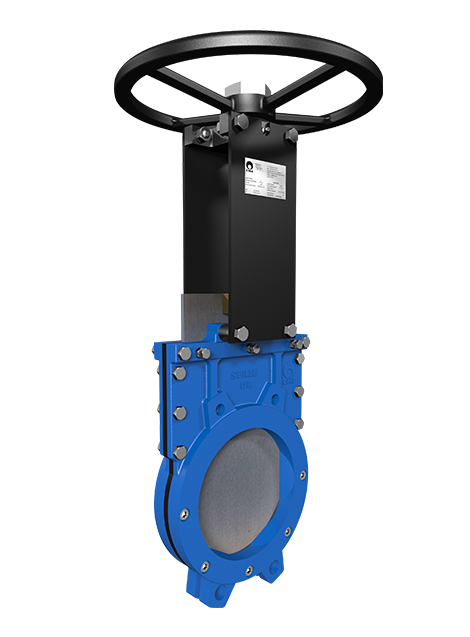

The CMO UB Knife Gate Valve consists of two fully machined parts assembled with screws to create a solid body. This allows the valve to support the same pressure from either flow direction. Additional internal guides enable the gate to move smoothly through the stroke.

The seal is sandwiched between the split body and secured with screws. It’s reinforced with a metal core up for valves up to DN 600 and an outer rim for larger sizes. There are no internal cavities with such a completely flat seal, preventing the accumulation of solids.

This valve can be customised with a variety of body, gate, and seat materials, as well as other accessories, to suit your specific working conditions.

The CMO UB Knife Gate Valve is suitable for clean liquids and liquids with some solids.

Technical specifications

Brand

CMO

Model

UB series

Size range

DN50–2000 (2–80”)
Contact us for bigger sizes

Pressure class

10 bar (DN50–200)
7–10 bar (DN250–300)
6–10 bar (DN350–400)
4–10 bar (DN450–600)
2–10 bar (DN700–1400)
2–6 bar (DN1600–2000)

End connections

Wafer

Actuator options

Handwheel
Gear operated
Pneumatic
Hydraulic
Electric

Material specifications

Body

Standard: GJL-500 cast iron and CF8M stainless steel
On request: A216WCB carbon steel and stainless steel alloys (AISI 316 Ti, Duplex, 254 SMO, Uranus B6)

Gate

Standard: AISI 304 and 316 stainless steel, Duplex (for high pressures)
Contact us for other materials, coatings, and finishes

Seat and max temperature

EPDM, nitrile (90°C)
Silicone (200°C)
Viton (210°C)
PTFE (250°C)
