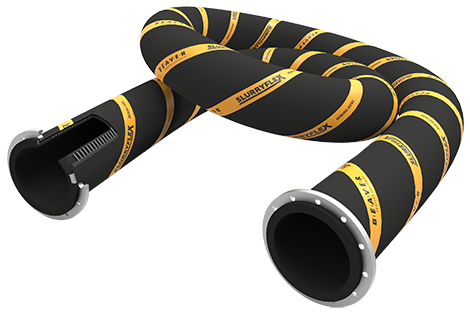

The Slurryflex SF-Series Superflex Hard-Wall Mining Hose is a hard-wall hose used for special installations that require a tight bend radius which can’t be achieved using a standard mining hose. This hose can reach a bend radius of 4–7D.

It has an abrasion or chemical-resistant inner layer made from hard-wearing rubber, a wire helix reinforcement layer for strength, and a protective outer layer that shields it from extreme weather, chemicals, and oils. Slurryflex Grade A rubber gives you long term resistance to abrasion, cutting, and tearing.

The Slurryflex SF-Series mining hose is suitable for suction and discharge applications.

All of our mining hoses are custom made in Australia according to your specifications. We have the largest mining hose factory in Australia and use a hot vulcanisation process to produce a robust, premium hose. Talk to us about your requirements and we’ll help you choose the right hose for the job.

Technical specifications

Brand

Slurryflex

Model

SF-Series

Hose size

DN50–1500 (2–60”) as standard

Hose length

Up to 20m (66’) as standard

Pressure rating

-100kPa to +5000kPa (-14.5psi to +725psi)
Higher on request

Temperature rating

-30°C to +75°C for Slurryflex Grade A rubber

End connections

Plain end
Flanged (fixed or swivel)
Flanged full spigot (fixed or swivel)
Double flanged
Grooved (roll or cut)
Threaded
Butt weld
Custom

Flange types

AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092, BS3293, JIS B2220, SANS 1123, DIN ISO 7005, custom

Groove types

AWWA C606 OGS, Victaulic AGS, custom

Thread types

BSP, NPT, API, premium, custom

Safety factor

4:1 as standard

Extra options

Custom nozzles, branches, or connections
Wear monitoring system (plug-only or push-button)

Material specifications

Inner liner

Slurryflex Grade A rubber (for high-wear slurry)
Slurryflex ASR rubber (for acidic slurry)
Slurryflex HSR rubber (for hydrocarbon-containing slurry)
Slurryflex TSR rubber (for high-temperature slurry)
Slurryflex custom formulation

Reinforcement

Synthetic fabric and wire helix

Outer cover

UV, ozone, and abrasion-resistant rubber

End connections

Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy
